Transformer
Overview

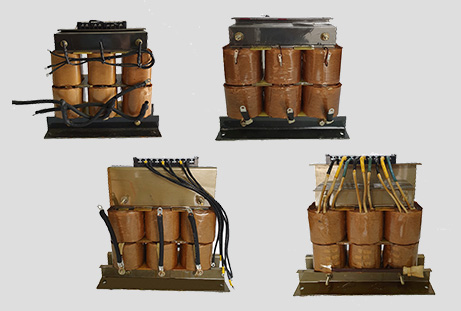

This is a main transformer of a battery charger designed and manufactured for an electric forklift, which minimizes the variations in charging currents regardless of fluctuations in AC input voltage by employing the mechanism of a leakage transformer.
Features
This product, a dry H-Series transformer, improves the insulating efficiency by using Epoxy Bobbin and NOMEX insulation paper, and through process of varnish vacuum impregnation. This transformer has proved its stability through the vibration-proof test and the temperature test in compliance with the Japanese standards of an electric forklift transformer.
Electric Properties
- 1AC Input Range : AC 220V~240V / 360V~400V/ 420V~460V(50/60Hz)
- 2DC Output Range (48V BATT.) : DC 40-65V
- 3Secondary Output
Property- Beginning stage 50.4Vdc: (Battery AH capacity 0.24C) AMPERE+-5A
- Ending stage 62.4Vdc: (Battery AH capacity 0.06C) AMPERE+-3A
- 4Insulation Resistance : over 10MΩ (DC 500V mega) (PRI COIL – CORE, SEC COIL – CORE, PRI COIL – SEC COIL)
- 5Proof Pressure : 1500V/1 minute (PRI COIL – CORE, SEC COIL – CORE, PRI COIL – SEC COIL)

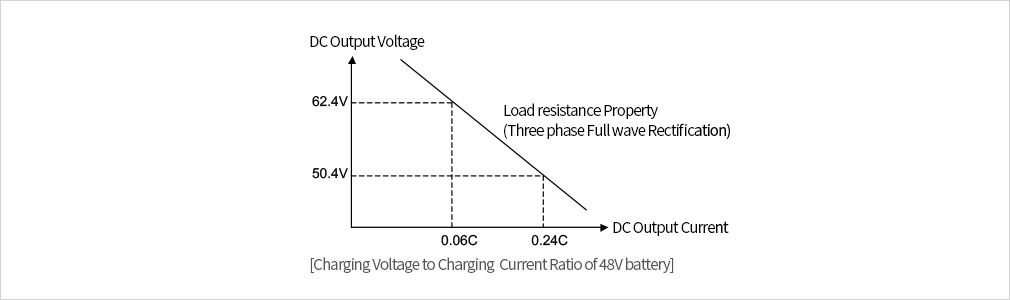

Load Resistance Property
